Hot Air Sealers
The Supersealer Hot Air Sealers utilize hot air to continuously seal a wide range of bag materials at high speed and efficiency. They are available in painted steel, stainless steel, or wash down. We offer horizontal and vertical sealing systems in stand alone and custom configurations.
Supersealer SS1 Hot Air Sealer - Painted version
The Supersealer SS1 Hot Air Sealer, utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency. The advanced airflow, sophisticated controls, and rugged painted construction ensures continuous uptime performance in all applications.
By using ambient air to seal the bag, there is no requirements for compressed air. The Supersealer gives customers a low maintenance and an outstanding return on investment along with the many years of uptime the machine will have.
Features | Benefits |
 Hot Air Sealing Technology | Optimum seal quality at low maintenance |
| Variable Speed | Ease of matching conveyor speeds and flexibility |
| Closed Loop PID Temperature Control | Accurate and consistent sealing temperature |
| Motorized Pedestal | With a touch of a button, for height adjustments, simplifying multiple bag applications |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes |
| Bag Materials: | Heat Sealable up to 10 mils. |
| Speed: | Up to 80 fpm. Other speeds available upon request |
| Seal Wheels: | 1/4” or 6mm standard. Optional 3/8” or 9mm |
| Machine Handing: | Right to Left or Left to Right |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp |
| Pneumatic: | Not Required on standard configuration Required for optional Jet Flow Trim Remover |
Supersealer SS2 - Hot Air Sealer - Stainless Steel
The Supersealer SS2 Hot Air Sealers utilizes hot air to continuously seal a wide range of bag materials at high speed and efficiency. The advanced airflow, sophisticated controls, and 316 stainless steel construction, ensures continuous uptime performance in all applications.
By using ambient air to seal the bag, there is no requirements for compressed air. The Supersealer gives customers a low maintenance and an outstanding return on investment along with the many years of uptime the machine will have.
Features | Benefits |
| Hot Air Sealing Technology: | Optimum seal quality at low maintenance |
| Variable Speed: | Ease of matching conveyor speeds and flexibility |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature |
| Motorized Pedestal: | With a touch of a button, for height adjustments, simplifying multiple bag applications |
| Stainless steel exterior finish. | Clean & durable finish, preferred in food and other industries. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes |
| Bag Materials: | Heat Sealable up to 10 mils. |
| Speed: | Up to 80 fpm. Other speeds available upon request |
| Seal Wheels: | 1/4” or 6mm standard. Optional 3/8” or 9mm |
| Machine Handing: | Right to Left or Left to Right |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp |
| Pneumatic: | Not required on standard configuration Required for optional Jet Flow Trim Remover |

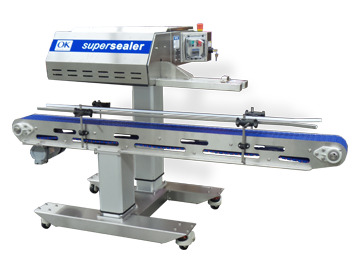

Supersealer SS2 Washdown
The Supersealer SS2 Washdown Hot Air Sealer is available in a IP65 or IP69K rated bag sealer. An IP65 rated bag sealer can be washed down with a garden hose pressure only. Our IP69K bag sealer or system can handle the demands of aggressive washdown.
Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.
Features | Benefits |
| Hot Air Sealing Technology: | Optimum seal quality at low maintenance |
| Variable Speed: | Ease of matching conveyor speeds and flexibility |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature |
| Motorized Pedestal: | With a touch of a button, for height adjustments, simplifying multiple bag applications |
TECHNICAL SPECIFICATIONS | |
| Bag size range: | All Bag Sizes |
| Bag Materials: | Heat Sealable up to 10 mils |
| Speed: | Up to 80 fpm. Other speeds available upon request |
| Seal Wheels: | 1/4” or 6mm standard. Optional 3/8” or 9mm |
| Machine Handling: | Right to Left or Left to Right |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp |
| Pneumatic: | Not Required on standard configuration Required for optional Jet Flow Trim Remover |
| Finish: | Stainless Steel |

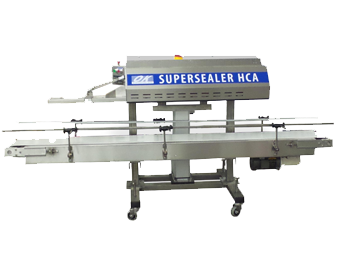

Supersealer SS4 - High Capacity Sealer
The Supersealer SS4, Stainless Steel High Capacity Hot Air Sealer, is designed to operate in tough industrial applications and demanding environments. With years of field experience and customer input, the SS4 sealing machine is supplied to provide superior bag sealing efficiency and reliability.
Its 316 stainless steel finish, heavy-duty construction, motorized and increased heat capacity enables sustainable high-speed output for thicker bags. With it’s 8 heaters, it will seal material up to 40 mils or 1000 microns and run a speed up to 120 fpm. The sealer provides consistent worry-free long-term reliability for a wide range of tough sealing products.
Features | Benefits |
| Stainless Steel Finish | Clean and durable |
| Hot-Air Sealing Technology: | Optimum seal quality at low maintenance |
| Variable Speed: | Ease of matching conveyor speed and flexibility |
| PID Temperature Controls: | Accurate and consistent sealing temperature |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range | All Bag Sizes |
| Bag Material Range: | Heat sealable materials up to 12 mils or 300 microns |
| Speed: | Up to 80 fpm. Other speeds available upon request |
| Seal Width: | 1/4” or 6mm standard. Optional 3/8” or 9mm |
| Machine Handing: | Right to Left or Left to Right |
| Electric: | 220 VAC, 1 Phase, 50 Hz, 7 Amp to requirement CE Marked |
| Pneumatic: | 80-160 psi clean dry air required when optional trim remover used |
| Finish: | Stainless steel electrical enclosure and cover sheets. |
See Our Machines in Action
Supersealer SS2 - Continuous Rotary Hot Air Sealer - Stainless Steel Version
Supersealer SS2 w/M-500 Conveyor - Hot Air Sealer
Supersealer SS2 - Continuous Rotary Hot Air Sealer - Washdown
Supersealer SS4 - High Capacity Hot Air Sealer
Options
Customize your machine
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Washdown (IP65 or IP69K) and Corrosive Washdown
- Dedusters for difficult dusty environments
- Touchscreen Display Unit
