Air Evacuation/Gas Flush Systems

OK Sealer has developed a continuous bag sealer with air evacuation/gas flush for smaller bags, bag-in-box or horizontal applications. These systems are available in stainless steel, wash down IP65 or wash down IP69K.

Air Evacuation/Gas Flush System

Small Bag Application

OK Sealer has developed a continuous bag sealer with air evacuation or air evacuation and gas flush for smaller bag applications.

Videos Brochure Manual

Air Evacuation/Gas Flush System

Bag-in-Box Application

OK Sealer has developed a continuous bag sealer with air evacuation or air evacuation and gas flush for bag-in-box applications.

Videos Brochure Manual

Air Evacuation/Gas Flush System

For Horizontal Application

OK Sealer has developed a continuous bag sealer with air evacuation or air evacuation and gas flush for horizontal applications.

Videos Manual

Air Evacuation/Gas Flush System - Small Bag Application

OKI has developed a continuous bag sealer with either air evacuation, gas flush or a combination of both. This system is available in Stainless Steel, all 316 Stainless Steel, wash down IP65 and wash down IP69K.

This system incorporates a Supersealer SB20 band sealer or Supersealer SS2 hot air sealer along with a probe and conveyor. There is a touch screen on the flow control with a probe section of this system, so that the configuration of either air evacuation, gas flush or both can be achieved. The probe can be put on a timer or use a foot pedal to activate.

Our machines are built with 316 stainless steel and anodized aluminum and most parts can be removed with no tools for cleaning or wash down.

It runs on 110 or 220 volt, and can be plugged into any wall socket.

Air Requirements is 80 psi and the system is CE marked.

We can run up to 10 bags a minute if the application, bag and requirements fit this level of speed. This system has many different configurations to meet product packaging parameters. We have configurations from small bags up to bag in box applications.

Sanitation of plants is the new normal and we have the sealer to meet the demands companies require. This system extends shelf life and reduce volume for more compact packages.

Our satisfied customers include producers of coffee, snacks, pre-baked goods, electronics, medical devices, fresh or dried food, produce, chicken and meat.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized Pedestal With a touch of a button, for height adjustments, simplifying multiple bag/pouch applications
Air Evacuation/Gas FlushContinuous process

TECHNICAL SPECIFICATIONS

Speed:TBD with application
Seal Width:5/16” /8mm. Optional 3/4”/19mm
Machine Handing:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 Ph, 60 Hz, 10 Amp or 220 VAC, 1 Ph, 50 Hz, 7 Amp CE marked
Pneumatic:80 psi

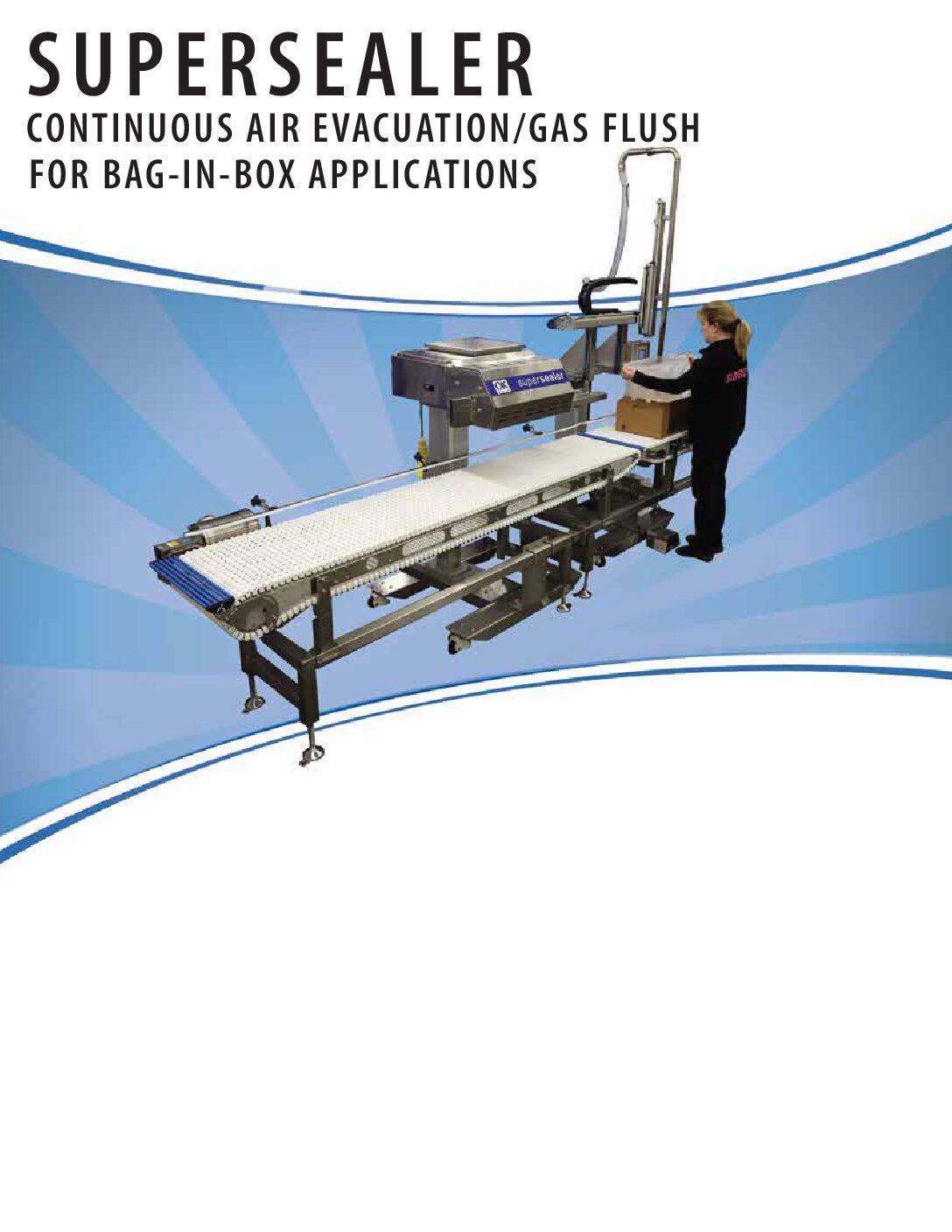

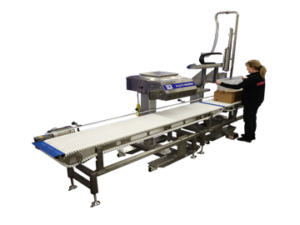

Air Evacuation/Gas Flush System - Bag-In-Box Application

OKI has developed a continuous bag sealer with air evacuation or air evacuation and gas flush. This system is available in stainless steel, wash down IP65 and wash down IP69K.

This system incorporates a Supersealer SB20 band sealer or Supersealer SS2 hot air sealer along with a probe and conveyor.  There is a touch screen on the flow control with a probe section of this system, so that the configuration of either just air evacuation or air and gas can be achieved. The probe can be put on a timer to come down or use a foot pedal to activate.

Washdown version - IP65 and IP69K rated washdown bag sealers. An IP65 rating sealer can be washed down with a garden hose pressure only.  Our IP69K Sealer or system can handle the demands of aggressive washdown.
Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards.OKI is the only manufacturer of this kind of system for bag in box that meets IP69K requirements.

Our stainless steel, IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.

It runs on 110 volt or 220 volt, and can be plugged into any wall socket.

Air requirements 80 psi and the system is CE marked.

We can run up to 15 bags a minute if the applications, bag and requirements fit this level of speed.

Sanitation of plants is the new normal and we have the sealer to meet the demands companies require. The air evacuation/gas flushed sealed bags extend shelf life, and reduce volume for more compact packages. The OK Sealers easily integrate into any packaging operation.

Our satisfied customers include producers of coffee, snacks, pre-baked goods, electronics, medical devices, fresh or dried food, produce, chicken and meat.

Videos Brochure Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized Pedestal With a touch of a button, for height adjustments, simplifying multiple bag/pouch applications
Bag-in-Box Continuous process

TECHNICAL SPECIFICATIONS

Speed:TBD with application
Seal Width:5/16” /8mm. Optional  3/4”/19mm
Machine Handing:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 Ph, 60 Hz, 10 Amp or 220 VAC, 1 Ph, 50 Hz, 7 Amp CE marked
Pneumatic:80 psi

Air gas horizontalAir Evacuation/Gas Flush System - Horizontal Application

OKI has developed a continuous bag sealer with air evacuation or air evacuation and gas flush. This system is available in stainless steel, 316 stainless steel, wash down IP65 and wash down IP69K.

This system incorporates a Supersealer band sealer, hot air sealer or medical sealer along with a probe and conveyor.  There is a touch screen on the flow control with a probe section of this system, so that the configuration of either just air evacuation or air and gas can be achieved. The probe can be put on a timer to come down or use a foot pedal to activate.

Washdown version - IP65 and IP69K rated washdown bag sealers. An IP65 rating sealer can be washed down with a garden hose pressure only.  Our IP69K Sealer or system can handle the demands of aggressive washdown.
Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards.OKI is the only manufacturer of this kind of system for bag in box that meets IP69K requirements.

Our stainless steel, IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.

It runs on 110 volt or 220 volt, and can be plugged into any wall socket.

Air requirements 80 psi and the system is CE marked.

Sanitation of plants is the new normal and we have the sealer to meet the demands companies require. The air evacuation/gas flushed sealed bags extend shelf life, and reduce volume for more compact packages. The OK Sealers easily integrate into any packaging operation.

Our satisfied customers include producers of coffee, snacks, pre-baked goods, electronics, medical devices, fresh or dried food, produce, chicken and meat.

Videos Manual

Features

Benefits

No Tool Band Change Over Easy to maintain
Variable Speed Ease of matching conveyor speeds and flexibility
Closed Loop PID Temperature Control Accurate and consistent sealing temperature
Motorized Pedestal With a touch of a button, for height adjustments, simplifying multiple bag/pouch applications
Bag-in-Box Continuous process

TECHNICAL SPECIFICATIONS

Speed:TBD with application
Seal Width:5/16” /8mm. Optional 3/4”/19mm
Machine Handing:Right to Left or Left to Right
Electric Requirements:110 VAC, 1 Ph, 60 Hz, 10 Amp or 220 VAC, 1 Ph, 50 Hz, 7 Amp CE marked
Pneumatic:80 psi

See Our Machines in Action

Bag Sealer with Optional Air Evacuation - Gas Flush Probe for Small Bag Applications

Bag Sealer with Optional Air Evacuation - Gas Flush Probe for Bag in Box Applications (IP65 or IP69K)

Bag Sealer with Optional Air Evacuation - Gas Flush Probe for Bag in Box Applications

Bag Sealer with Optional Air Evacuation - Gas Flush Probe for Small Bag Applications - 316 Stainless Steel

Options

Customize your machine

  • Bag Top Trimmers
  • Trim  Removers 3" (76mm) or 5" (127mm)
  • Bag Coders and Printers
  • Customized Conveyors
  • Bag Fillers and Bag Loaders
  • Available in Washdown (IP65 or IP69K)
